Beautiful white porcelain switch for recessed wall box installation. The switch is resiliant and comes with dimmer module.
The switch is manufactured by the Swedish-Swiss company ABB and has a quick-connect feature for easy and secure cable installation. The insert, button, and frame are entirely made of porcelain and come pre-assembled. ABB's Decento switch series has a classic old-fashioned look in a fine balance with modern technology.

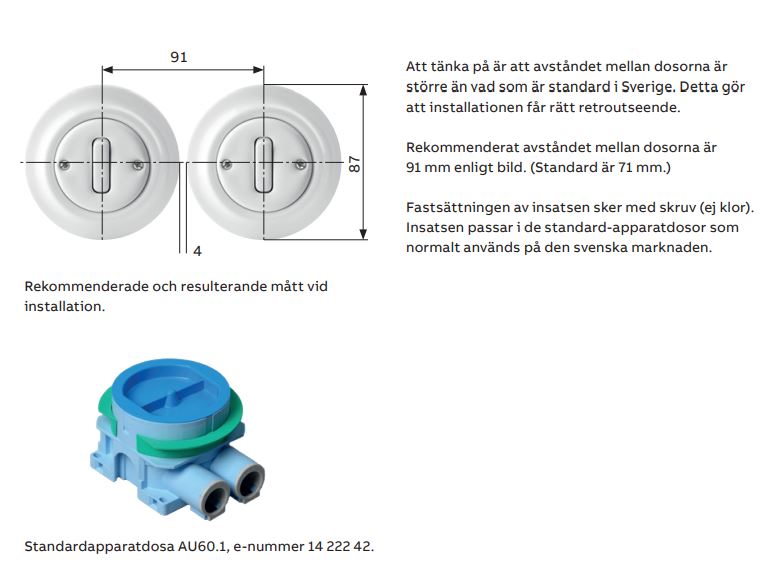

To install multiple units horizontally or vertically side by side, the center-to-center distance must be at least 90 mm (3.54 in). The recommended distance between the boxes is 91 mm (3.58 in).
Technical Data
Type: Resilient Double Push-button
Rated Voltage: Max 250 V
Rated Current: 10 A
Material: Porcelain
Color: White
Diameter (width): 87 mm (3.43 in)
Depth: 35 mm (recessed depth 26 mm) (1.38 in, recessed depth 1.02 in)
IP Class: IP20
E-number: 1815264
Plejd 2-channel dimmer - 2-channel universal dimmer with output for two different loads that can be controlled wirelessly via the app on your phone. The dimmer can withstand loads of up to 100 VA per channel and has adjustable minimum, maximum and starting levels. The dimmer is installed in the mounting box behind the push button/box lid, with the mounting clip on the wall or on a DIN rail.
Dimensions: 46 x 46 x 18 mm (1.81 x 1.81 x 0.709 in.)
